Lifting Devices

Lifting Device Products

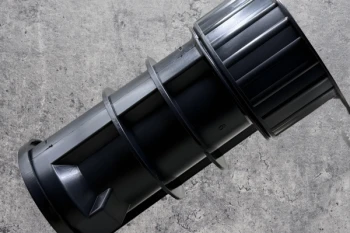

• Break-Away Lift-Eye Pin Insert
  004-40045-1

  Plastic inserts cast into walls of concrete structures for lifting and handling - Breaks Away from jacket when stripping

  • Features “Break-Away” extension molded on the end of Lift Insert
  • Easy installation - from outside of the jacket
  • Safe Working Load 3500 lbs ea, 4:1 safety factor
  • Inexpensive and dependable way to handle 48" manholes

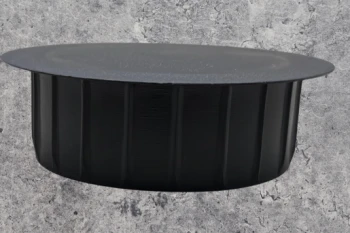

• Breakaway Lift-Eye Pin Insert Sleeve Plug
  004-734
  • Plugs Lift Insert Sleeve in jacket when a Lift Insert is not required

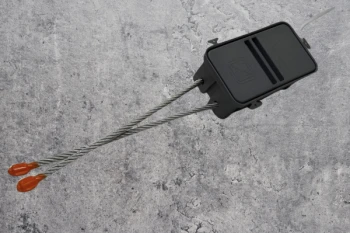

• Flexible Cable Lifter w/Pocket
  004-594-C

  Flexible cable recessed inside a plastic pocket that can be cast into walls of concrete structures for lifting and handling

  • Single: SWL 9000 lbs ea, 4:1 safety factor
  • Double: SWL 20,000 lbs ea, 4:1 safety factor
  • Wire rope, ½” diameter, galvanized
  • Aluminum stops crimped at ends of wire rope
  • 4”x 9”x 4” plastic pocket for recessing in concrete walls
  • Ample space for any size hook, easy pick point to access
  • No additional hardware required

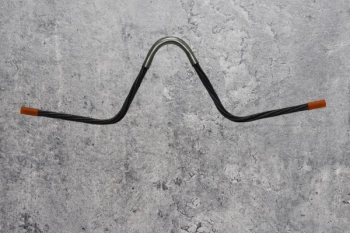

• Lift Irons
  004-580

  Stranded cable lifter that can be cast into concrete structures for lifting and handling

  • SWL: Single 3/8” diameter 4000 lbs ea, 4:1 safety factor
  • SWL: Single ½” diameter 7500 lbs ea, 4:1 safety factor
  • SWL Double ½” diameter 14,000 lbs ea, 4:1 safety factor
  • Uncoated 7 wire strand, 270k low relaxation, heat treated
  • No additional hardware required

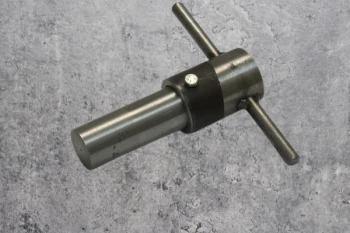

• Lift Pin Cam Pin
  004-725

  Lift Pin Cam Pin forms a hole during the wet cast operation for the Plastic Lift Pin.

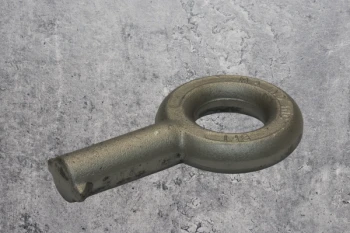

• Lift-Eye Pin
  004-744

  Forge Steel

  • SWL 4500 lbs ea , 5:1 safety factor
  • Meets OSHA 1926.74c

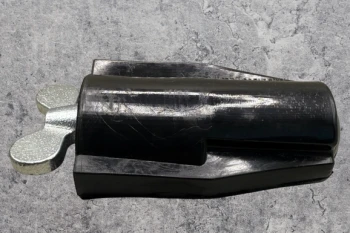

• Locator for Lift-Eye Pin Insert
  004-40044-0

  Secures Lift Insert to manhole form

  • Made of urethane rubber
  • Bolts to form’s jacket using only 5/8” hole
  • Includes 5/8” wing nut bolt

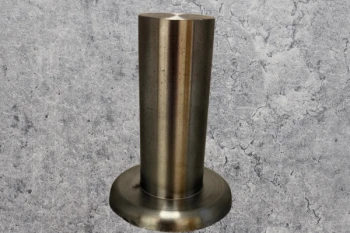

• Magnetic hole former
  004-40015-1

  Magnetic Hole former; Compatible with 004-710-C, 004-711-C

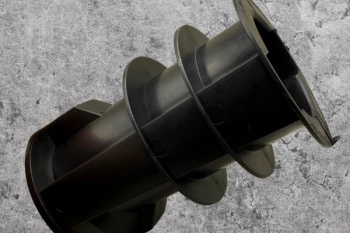

• Manhole Lift-Eye Pin Standard Insert
  004-40043-1

  Plastic inserts cast into walls of concrete structures for lifting and handling

  • Safe Working Load 3500 lbs ea, 4:1 safety factor
  • Inexpensive and dependable method for handling 48” manholes

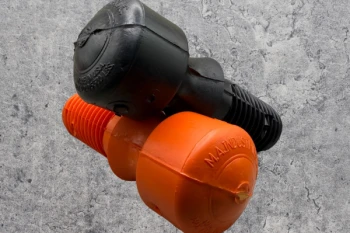

• Plastic Lift Pin
  004-711-C (Black) 004-710-C (Orange

  Steel-Reinforced Plastic Pin

  Can be hammered into pre-formed holes in walls of concrete structures

  • SWL 5500 lbs ea, 4:1 safety factor
  • Reinforced w/1” diameter steel rod
  • Made of impact resistant copolymer polypropylene plastic
  • Hammer into 1-½” dia x 3-5/8" deep hole
  • No additional hardware required
  • Great quick-fix for lifting

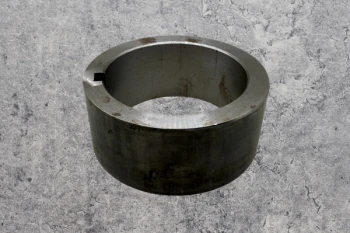

• Sleeve for Break Away Step
  004-510-LLSL

  Steel Sleeve for Step Inserts Large Leg

  • Welds to form's core
  • Provides permanent locator for MA'S Step Inserts RWLL
